MPLAB Starter Kit for PIC24F User’s Guide
The microcontroller directly drives the OLED display (LED1) and the tri-color LED (D6,
D10 or D11, depending on the board’s manufacturing option). The microcontroller uses
the Parallel Master Port to drive the OLED through the PMD7:PMD0 data lines, while
PMA0, PMCS2, PMRD and PMWR serve as control signals. A DC boost circuit
comprised of power MOSFET Q4, along with D5 and L3, provides the operating voltage
for the OLED.
The individual channels of the tri-color LED are driven directly by three of the
microcontroller ’s PWM modules, assigned to outputs on pins RF4/RF5, RG6/RG7 and
RG8/RG9. Two output pins are used for each PWM to ensure sufficient drive strength
for each LED component.
The microcontroller uses an on-chip USB On-The-Go (OTG) engine and transceiver to
communicate with USB A and mini-B receptacles on the application side. While both
receptacles are populated, only the A receptacle is used in this version of the demo
application. The mini-B receptacle is available for users who may wish to design a
peripheral application.
5.2
PROGRAMMER/DEBUGGER FUNCTIONAL OVERVIEW
Figure 5-2 illustrates the debugging/programming operation of the starter kit.

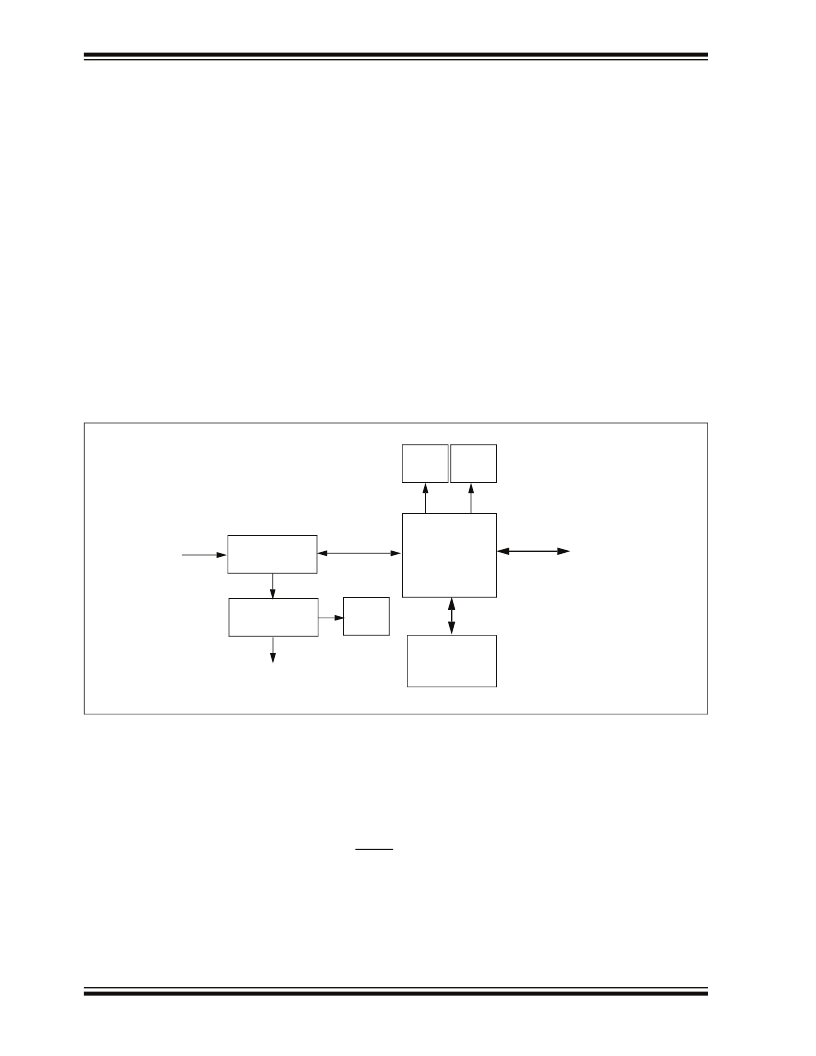

FIGURE 5-2:
STARTER KIT PROGRAMMER/DEBUGGER BLOCK DIAGRAM
Debug
LED
12 MHz
Crystal
From Host PC
USB mini-B
Jack
USB Data
PIC18F67J50
ICSP?
To Application Side
(PIC24FJ256GB106)
V BUS
3.3V LDO
Regulator
V DD to Starter Kit
Power
LED
SPI
Serial EEPROM
25LC010A
In its default configuration, the Starter Kit functions as a USB bus-powered device.
Power is provided via the USB cable; the nominal 5 volt unregulated supply is regulated
by a Microchip MC1727 3.3 volt low-dropout (LDO) linear regulator. Proper main
system power is indicated by the green LED (D2).
The debugging and programming side of the Starter Kit is controlled by a PIC18F67J50
microcontroller running at 48 MHz. The PIC18F67J50’s built-in USB engine provides
the communications interface between the Starter Kit and the host PC. The
microcontroller manages debugging or programming of the target PIC24FJ256GB106
by controlling the target’s MCLR, PGC1/EMUC1, and PGD1/EMUD1 signals. Target
power is switched on and off via a low V CE saturation PNP transistor (Q1) configured
as a high-side switch. Target clocking is also provided by the PIC18F67J50.
A Microchip 25LC010A serial EEPROM is used to store the starter kit’s serial number
and debug control information.
DS51725A-page 28
? 2008 Microchip Technology Inc.
